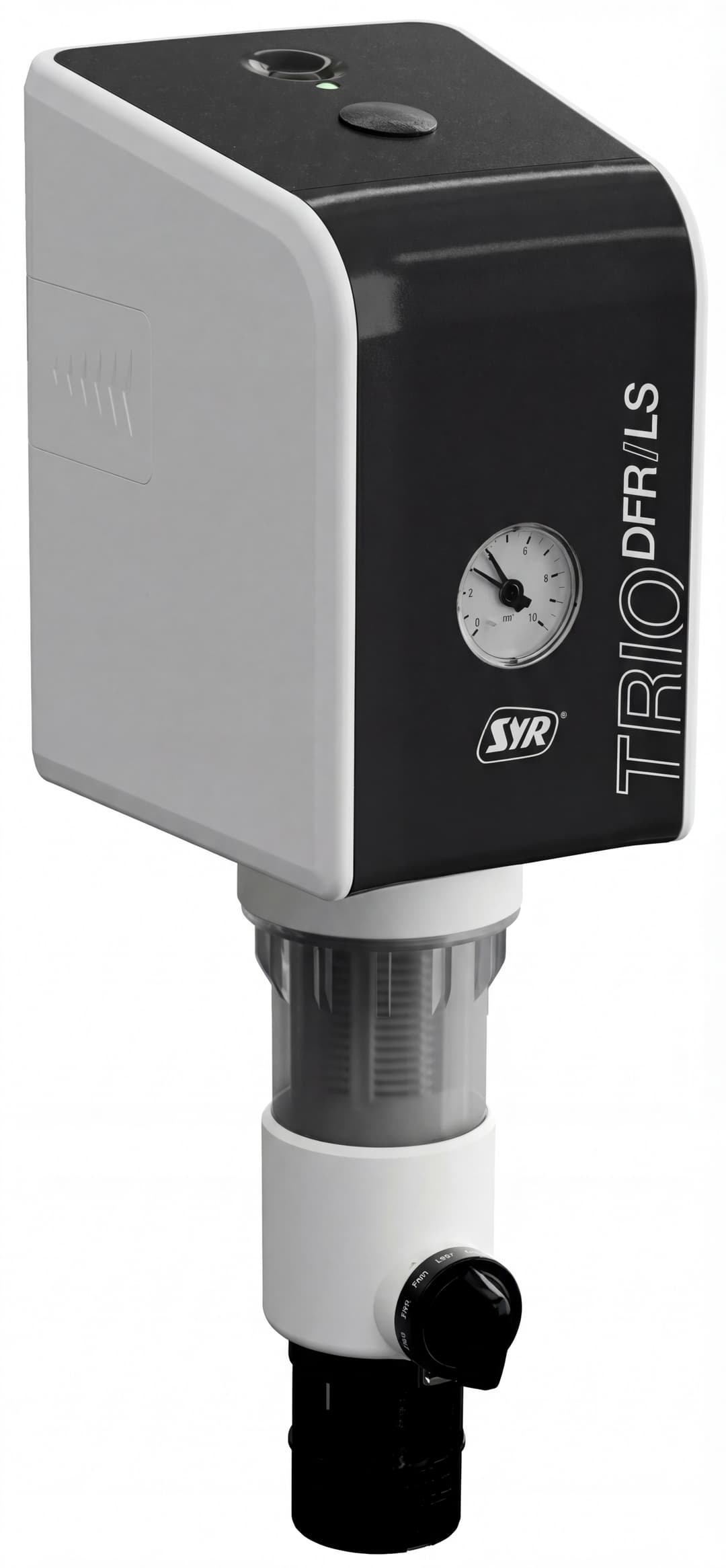

Trio Blackline leak protection device

Trio
Blackline

3-in-1 leak protection

Leak protection · Filter · Pressure reducer

Detects leaks, shuts off the water automatically and filters the water for the whole house. Controlled from the app.

01 / 02
Tablet with the water app: usage, pressure, temperature and valve at a glance

01How it works

Everything under control
from the app

Your leak protection is connected to Wi-Fi. So you can see what is happening with your water at any time – at home or away.

  • Usage at a glanceUsage, water pressure and temperature at a glance.
  • Alert on your phoneIf there is a leak, you are notified straight away.
  • Open and close the waterWith one tap – even when you are not on the island.

02Inside

How we detect
a leak

The device measures, learns and compares. Swipe right to see how it spots a leak.

Every litre is counted

Inside the device sits a small turbine. When water flows, it spins – and a sensor knows exactly how much is being used.

Water flows
Sensor measures
Valve closed · Alert on your phone

Example values. We set the limits to suit your house during installation. Animation: artist's impression.

It learns your usage

During the learning phase the device records when and how much water you use. That becomes your own profile. If usage later strays far from it, that is noticed at once. In a serious case the device shuts the pipe off by itself.

A row of 24 glass tubes filled to different heights with glowing blue water, like a chart of the day's use. One tube glows orange and is almost full.
24 hours of use
Unusual
Learning1–28days
Own profiles8possible
In an emergencyShuts off

Sensors and technology

This is what the Trio Blackline has on board so that no leak goes unnoticed.

A small turbine wheel in a clear tube, a circuit board with a sensor and a glowing LED, and behind them a brass motorised valve.
Illustration
  • TurbineElectronic water meter. Counts every litre that flows through the pipe.
  • Micro-leak testRegularly checks for the smallest leaks, such as a dripping toilet.
  • Motorised valveShuts the pipe off automatically. Reopen with the button on the device or in the app.
  • AlarmA warning tone on the device, plus a message to your phone and by e-mail.
  • Wi-Fi and LANConnected to your network, controllable from anywhere.
  • Floor sensorOptionalReports water on the floor and measures humidity and room temperature.

Figures as stated by the manufacturer for the Trio DFR/LS Connect. We set the limits to suit your home during installation.

Flow leak

With a burst pipe or a split hose, far more water suddenly rushes through than in everyday use. If the flow is above the limit, the valve closes.

A copper pipe has burst at the fitting and water sprays in all directions.
Burst pipe
Valve closed · Alert on your phone
Factory limit3000L/h
Adjustable up to5000L/h
In an emergencyShuts off

Time leak

If water runs without a break for longer than allowed, say an hour at a stretch, the device shuts off. Even when only a little is flowing: a forgotten garden hose or a running toilet.

A forgotten garden hose on a terrace at night; a thin stream runs and has formed a large puddle.
Water runs without a break
Shut off after 60 minutes
Adjustable½–25hrs
Example60min
Responds from3L/h
The brass lock flange that connects the device to the water pipe

03Installation

The
Flange

Simple installation

04Where it protects

Where installation
matters.

Tap an area: this is where the Trio Blackline sits in the pipe, and what it protects against.

01 / 04
Garden in cross-section: glowing pipe in the ground, sprinklers, drip lines and a small Trio Blackline on the supply pipeTrio BlacklineBreak undergroundSprinkler

Area 01Garden

Sprinklers, drip lines, pipes in the ground: in the garden most of the water flows where nobody can see it.

1device for the whole garden
24/7pipe monitored
AppAlert on your phone

Only very large properties with several pipes need more than one device.

  • A pipe breaks underground. The water seeps away and nobody notices.
  • A drip line bursts or a sprinkler breaks off.
Pool in cross-section: glowing fill line in the ground and a small Trio Blackline in the plant pitTrio BlacklineAuto-fillFill line

Area 02Pool

The auto-fill keeps the water level up. That is exactly why a pool leak goes unnoticed for so long.

1device per pool fill line
24/7fill line monitored
AppAlert on your phone

Every pool with its own fill line gets its own device.

  • The supply pipe to the pool breaks.
  • The pool has a crack. The auto-fill makes up for the loss and nobody notices.
Water tank in cross-section: glowing supply pipe, float valve in the tank and a small Trio Blackline on the pipeTrio BlacklineFloat valveCrack in the tank

Area 03Water tank

Cisterns and tanks sit underground. If water escapes there, you only see it on the bill.

1device per water tank
24/7filling monitored
AppAlert on your phone

Every water tank needs its own device on the supply pipe.

  • The float valve fails. The tank keeps filling and the water runs into the ground.
  • The tank has cracks. The water seeps away and the filling keeps topping it up.
House in cross-section: glowing water pipes in walls and floors, SafeFloor sensors on the floor and a small Trio BlacklineTrio BlacklineSafeFloorPipe in the wall

Area 04House

Most burst pipes happen in the wall or under the floor. By the time you see them, the damage is done.

1device per house
24/7all pipes monitored
+SafeFloor on the floor

SafeFloor lies on the floor and senses water immediately. The Trio Blackline then shuts off before furniture and wooden floors suffer.

  • Burst pipe in the wall. Often goes unnoticed for a long time.
  • A pipe in the ground under the house leaks.
  • The connection under the washbasin starts to leak.
  • A water filter breaks.

We work out how many devices you need during the on-site visit. Images: artist's impression.

05Maintenance

TurnOne turn of the lever starts the backwash. No tools needed.
FlushThe water flows backwards through the filter and flushes the dirt down the drain.
ClearLever back, and the water runs clear again.
Filter clean.
In seconds.
The Trio Blackline is ready again straight away.

06Frequently asked questions

Questions.
Answers.

The essentials on water leak protection, automatic shut-off and water safety on Mallorca.

What is a water leak protection system?

A leak protection system, also called an automatic water shut-off, is a device fitted in the main water pipe. It measures how much water flows. If an unusual amount flows, or water runs for an unusually long time, it shuts off the pipe by itself.

How does the Trio Blackline detect a leak?

A turbine inside the device measures the flow. If the set amount in one go or the set duration is exceeded, the valve closes. At the same time an alert is sent to your phone.

Where is the device installed?

At the water inlet, directly after the water meter. That way every litre runs through the device. For a pool, water tank or garden it sits on the relevant supply pipe.

How many devices do I need?

One device per house. Plus one per pool fill line and one per water tank. For the garden one is usually enough; only very large properties need more. We work that out during the on-site visit.

What happens once the water has been shut off?

You get a message on your phone. In the app you can see what is going on and open the water again when everything is fine. That works when you are away, too.

I only spend a few weeks a year on Mallorca. Is it worth it?

That is exactly when it is. In an empty house a leak can otherwise run for weeks. With leak protection the water is shut off, and you can see your water use in the app wherever you are.

What does SafeFloor do?

SafeFloor is a small sensor that lies on the floor, for example under the washbasin or next to the washing machine. It senses water immediately and reports it. The Trio Blackline then shuts off before furniture and wooden floors suffer.

Does the filter need maintenance?

The filter is backwashed: turn the tap, the dirt is flushed out, done. It takes seconds.

What does leak protection cost?

That depends on the house and the pipes. The on-site consultation is free; afterwards you receive a quote.

Which languages do you speak?

English, Spanish and German. English and Español: +34 608 063 242. Deutsch: +34 619 445 877.
